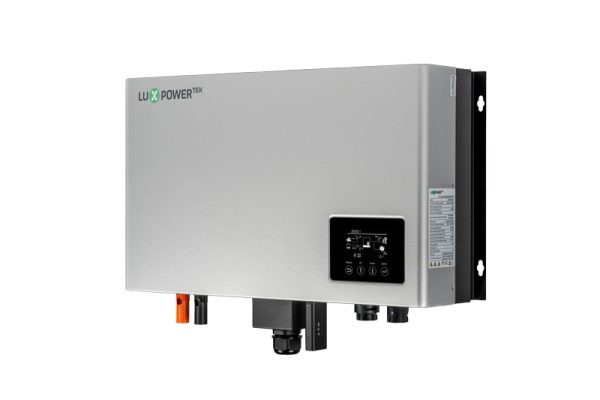

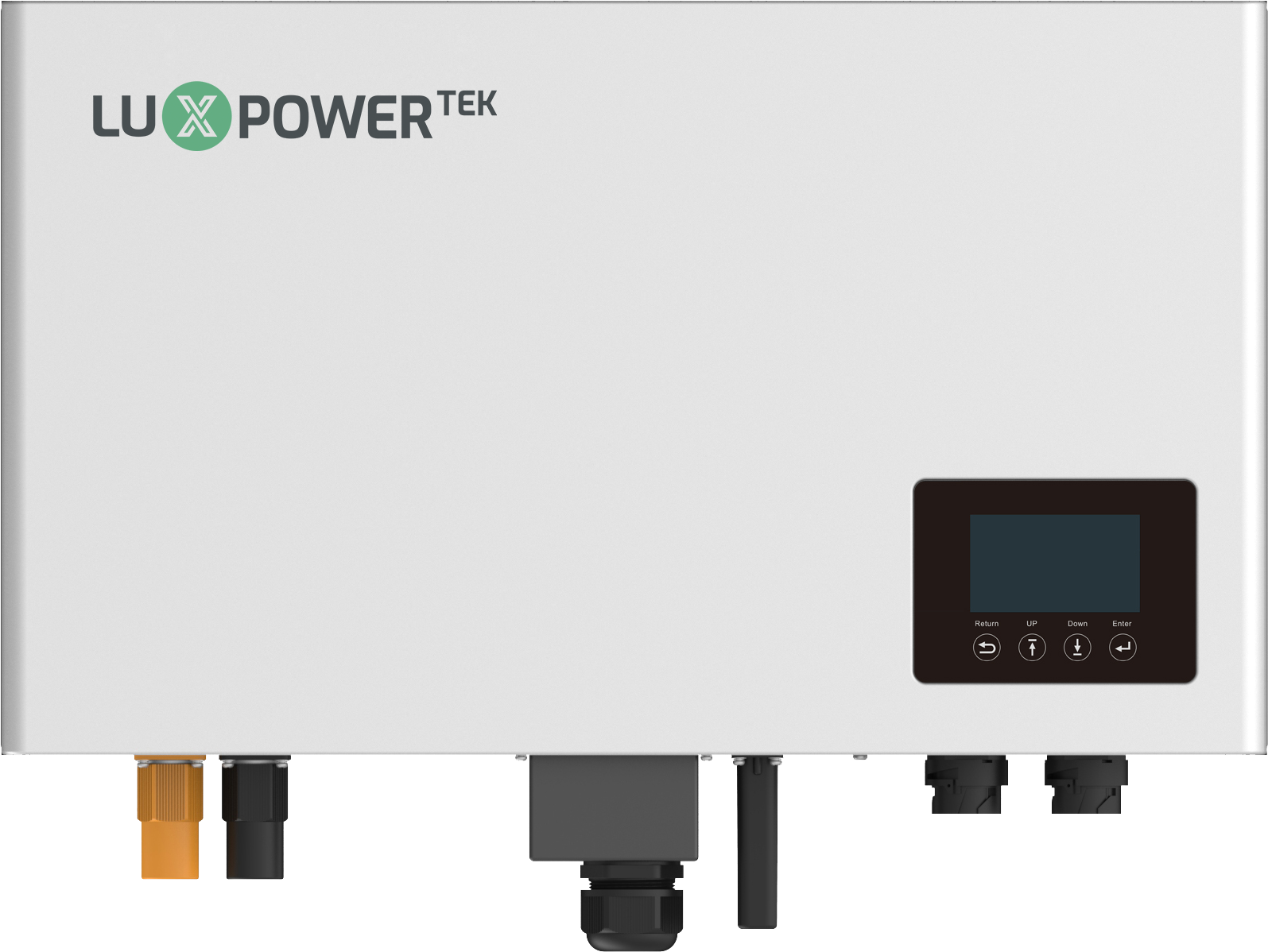

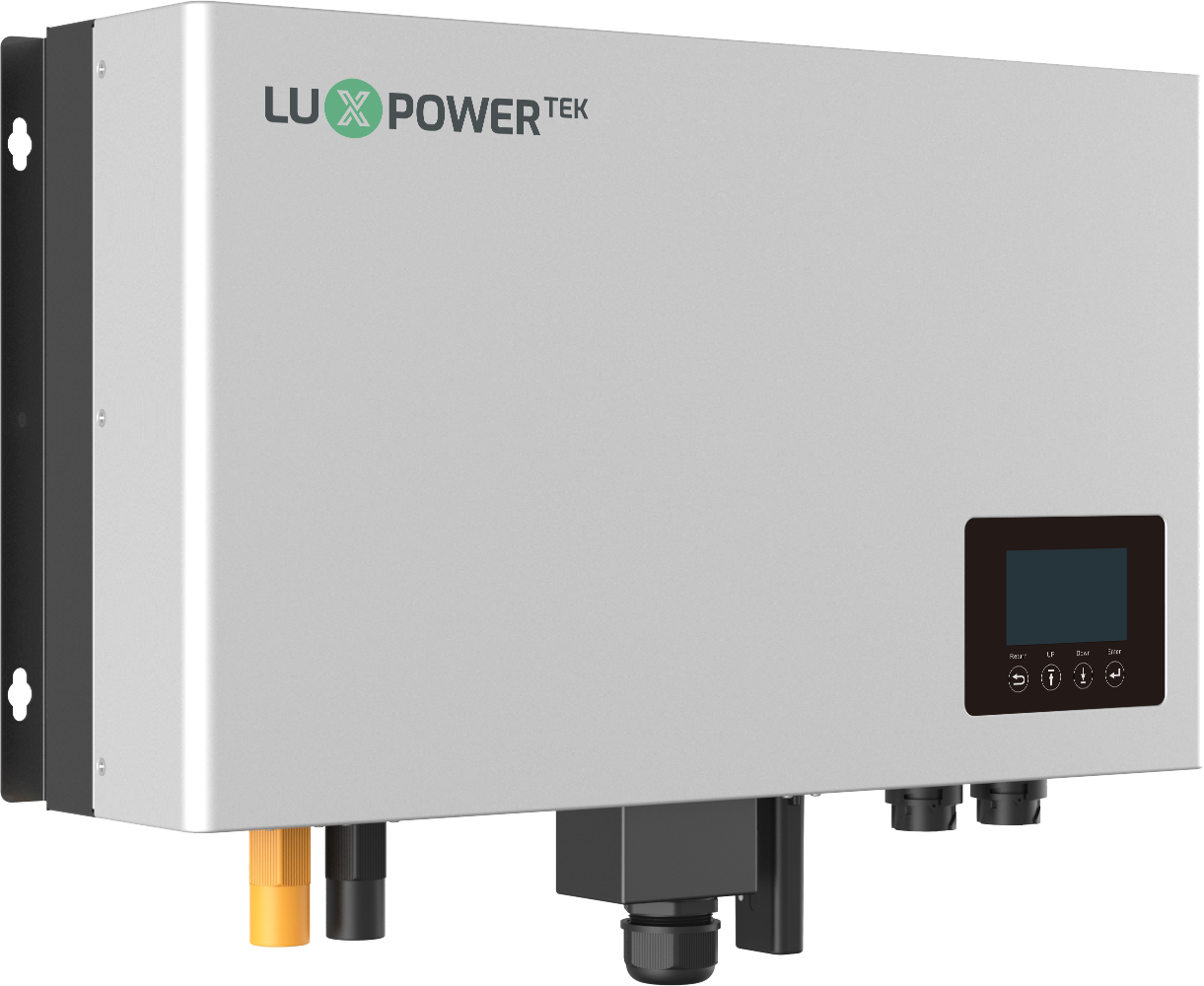

LuxPower AC Retrofit Inverter 3.6kW

SKU: ACS 3600 Categories: , Tag:

Product Code: ACS 3600

X
  • UK-based technical support team, always ready to assist
  • Reliable national RMA service with a 48-hour response time
  • 12-Year Warranty

LuxPower AC Retrofit Inverter 3.6kW

SKU: ACS 3600 Categories: , Tag:

Product Code: ACS 3600

Introduction

Luxpower’s ACS Inverter is a retrofit solution designed for transforming existing on-grid systems into efficient energy storage systems. This lightweight and compact inverter serve as the ideal choice for retrofitting and upgrading your current on-grid setup. While it cannot directly connect to PV panels, its primary purpose is to facilitate the transformation of your existing grid-tied system.

Key Features

  • Retrofit any on-grid/micro-grid system to energy storage system
  • Allows up to eight batteries connected
  • Battery charging/discharging current: 70A
  • Compatible with dynamic Octopus energy pricing
  • Advanced weather compensation programming
  • On/off grid seamless switching
  • Separate EPS port for flexible load management
  • Free monitoring – For mobile & web portal (PC)

LuxPower AC Retrofit Inverter 3.6kW

SKU: ACS 3600 Categories: , Tag:
PV Input
  • Max. PV array power : N/A
  • Max. input voltage : N/A
  • MPPT voltage range / rated input voltage : N/A
  • Min. input voltage / start voltage : N/A
  • No. of independent MPPT trackers / strings per MPPT input : N/A
  • Max. input current per MPP tracker : N/A
  • Max. short-circuit current per MPP tracker : N/A
Battery Input
  • Nominal battery voltage : 48V
  • Battery voltage range : 40V to 60V
  • Max. charging / discharge power : 3600W
  • Max. charging current / Max. discharging current : 70A
  • Battery type : Lithium-ion
AC Output
  • AC voltage range / Nomlnal AC voltage . 230V
  • Rated AC grid frequency . 50Hz/ 60Hz
  • Rated apparent power . 3600W
  • Max. apparent power .
  • Max. grid output current .
AC Input
  • Rated grid voltage . 230V
  • Rated apparent power . 6000W
  • Max. input apparent power from grid .
  • Rated input curent from grid .
  • Max. input current from grid . 26A
EPS Output
  • Nominal output voltage : 230V
  • Nominal output frequency : 50Hz/ 60Hz
  • Rated apparent power :
  • Max. output apparent power : 3600w
  • Peak output apparent power : 4500W | 30s
  • Max. output current : 16A
  • Max. switch time : 20ms
Efficiency
  • MPPT efficiency :
  • Euro efficiency / Max. efficiency : 97.0%/97.3%
  • Max. battery to load efficiency : 94.50%
General Data
  • Dimensions (W*H*D) (mm) : 550•320·110
  • Device weight : 15.6Kg
  • Operating temperature range : -25℃~+60℃
  • Noise emissions (typical) : <25dB
  • Standby consumption : <10
  • Degree of protection (as per lEC 60529) : IP65
Features
  • User interface : LCD & APP
  • Communication with BMS : RS485/WiFi/CAN
  • Communication with meter :
  • Communication with portal :
  • Other communication : Wi-Fi
  • Communication : LCD/ LED/RS485/ Wi-Fi/ CAN
  • Integrated power control / Zero export control :
  • Certifications : IEC62109-1 | IEC62040| EN 61000-6-1:2007 | EN 61000-6-3:2007+A1:2011+ AC:2012 | EN 61000-3-2:2014 | EN 61000-3-3:2013 | VDE-AR-N 4105
  • Warranty : 12 years
