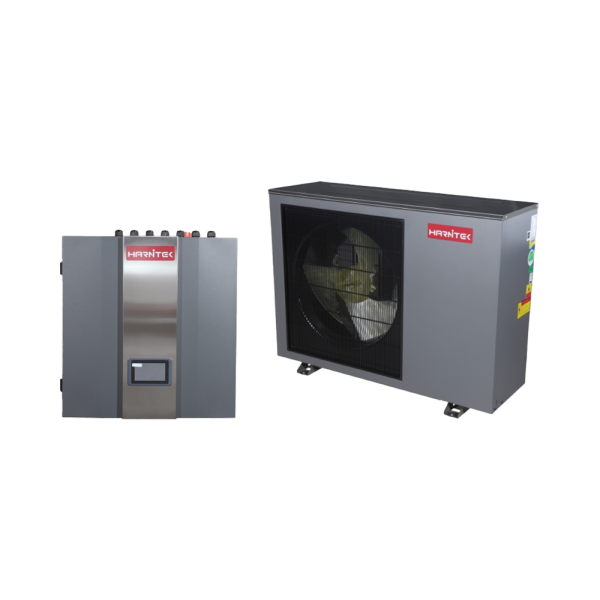

Harnitek Heat Pump Mono Package 12kW

SKU: YHPK-12V1TBA Categories: , Tag:

Product Code: YHPK-12V1TBA

X
  • UK-based technical support team, always ready to assist
  • 5-Year Warranty

Harnitek Heat Pump Mono Package 12kW

SKU: YHPK-12V1TBA Categories: , Tag:

Product Code: YHPK-12V1TBA

Energy Efficient

High energy efficiency and achieving A+++ energy efficiency under EU regulations



Quiet Operation

Super low noise, sound pressure level only 38dB(A) at 2.1 meters

Online Monitoring

With WiFi module and APP control

Hot Water Storage

Set timer for domestic hot water storage as needed for each day in a week

Heating Curve

Intelligently adjust outlet water temperature based on ambient temperature automatically

Modbus

Easy to communicate with BMS for smart building

Smart Defrosting

Maximum 1/3 of the units are allowed to defrost at the same time for stable temperature of the whole system

Emergency Operation

If master unit is offline, each heat pump can work individually

Flexible installation options

Water pipe connection only which is easy for installation

Harnitek Heat Pump Mono Package 12kW

SKU: YHPK-12V1TBA Categories: , Tag:
Power Supply

  • Power Supply / Refrigerant (V/Hz/Ph): 220-240/50/1-R32
Components

  • Compressor Type-Quantity/System: Twin Rotary – 1
  • Fan Quantity: 1
  • Fan Airflow (m³/h): 3150
  • Fan Rated Power (W): 45
  • Noise Level (Indoor/Outdoor) (dB(A)): 44 / 52
Hydraulics

  • Water Side Type: Plate Heat Exchanger
  • Heat Exchanger Water Pressure Drop (kPa): 26
  • Heat Exchanger Piping Connection (Inch): G1”
  • Allowable Water Flow Min./Rated/Max (L/s): 0.34 / 0.57 / 0.68
Dimensions and Weight

  • Net Dimension (Indoor Unit) (LxDxH) (mm): 570 x 550 x 255
  • Net Dimension (Outdoor Unit) (LxDxH) (mm): 1165 x 370 x 845
  • Net Weight (Indoor Unit) (Kg): 25
  • Net Weight (Outdoor Unit) (Kg): 85
Performance

  • Max Heating Capacity (1) (KW): 11.6
  • C.O.P (1) (W/W): 4.30
  • Heating Capacity Min./Max (1) (KW): 5.5 / 11.6
  • Heating Power Input Min./Max (1) (W): 1107 / 2683
  • C.O.P Min./Max (1) (W/W): 4.3 / 4.9
  • Max Heating Capacity (2) (KW): 11.2
  • C.O.P (2) (W/W): 3.45
  • Heating Capacity Min./Max (2) (KW): 4.9 / 11.2
  • Heating Power Input Min./Max (2) (W): 1401 / 3263
  • C.O.P Min./Max (2) (W/W): 3.3 / 3.5
  • Max Cooling Capacity (3) (KW): 9.8
  • E.E.R (3) (W/W): 3.9
  • Cooling Capacity Min./Max (3) (KW): – / 9.8
  • Cooling Power Input Min./Max (3) (W): – / 2510
  • E.E.R Min./Max (3) (W/W): – / 3.8
  • Max Cooling Capacity (4) (KW): 6.5
  • E.E.R (4) (W/W): 2.7
  • Cooling Capacity Min./Max (4) (KW): 4.9 / 6.5
  • Cooling Power Input Min./Max (4) (W): 1358 / 2444
  • E.E.R Min./Max (4) (W/W): 2.6 / 3.5
Note:
  1. Heating condition: water inlet/outlet temperature: 30°C/35°C, Ambient temperature: DB 7°C/WB 6°C;
  2. Heating condition: water inlet/outlet temperature: 40°C/45°C, Ambient temperature: DB 7°C/WB 6°C;
  3. Cooling condition: water inlet/outlet temperature: 23°C/18°C, Ambient temperature: DB 35°C/WB 24°C;
  4. Cooling condition: water inlet/outlet temperature: 12°C/7°C, Ambient temperature: DB 35°C/WB 24°C;
  5. The specifications are subject to change without prior notice. For actual specifications of unit, please refer to the stickers on the unit.
