Hanchu High Voltage Battery 5.12kWh

SKU: HOME-ESS-HV-5.12K Categories: , Tag:

Manufacturer Code: HOME-ESS-HV-5.12K

Order Code: HC-5.12-HV-Battery

X
  • UK-based technical support team, always ready to assist
  • Reliable national RMA service with a 48-hour response time
  • 12-Year Warranty

Hanchu High Voltage Battery 5.12kWh

SKU: HOME-ESS-HV-5.12K Categories: , Tag:

Manufacturer Code: HOME-ESS-HV-5.12K

Order Code: HC-5.12-HV-Battery

Unparalleled Safety

Premium Lithium Iron Phosphate Cells

Features high-quality cells renowned for their stability, safety, and long life cycle, providing a dependable and long-lasting power source.

Advanced Cooling Structure

Incorporates a bottom cooling design that improves thermal management, enhancing battery safety and extending its lifespan.

Aerosol Fire Suppression System

Cutting-edge technology to swiftly deploy internal protection capsule if any external fire is detected.

Optimal Performance

Smart Management with iESS

The intelligent battery management system provides cell-level protection, minimising maintenance costs through predictive diagnostics and optimising energy management with smart strategies.

High Depth of Discharge

Achieves up to 95% Depth of Discharge, maximising usable energy for superior efficiency in energy storage.

Optimised Charge and Discharge Rates

Benefits from enhanced rates, delivering robust power supply to home loads and effortlessly handling high-demand appliances and systems.

Flexible and Scalable

Easy Installation

Features a modular design with smaller volume and weight, along with quick-connect installations that eliminate extra wiring, allowing for a straightforward setup in just 15 minutes.

Scalability

Supports modular expansion with each cluster capable of scaling up to 12 units and 4 clusters in parallel, providing a total system capacity of up to 245.76 kWh to meet diverse energy needs.

Touchscreen Display

Equipped with a touchscreen display for real-time battery status monitoring and allows for basic settings adjustments, enhancing user interaction and control.

Hanchu High Voltage Battery 5.12kWh

SKU: HOME-ESS-HV-5.12K Categories: , Tag:
  • Cell Type: LFP
  • Module Capacity: 5.12kWh
  • Module Weight: 43Kg
  • Nominal Voltage per module: 51.3V
  • Module Dimension (W*D*H): 650 * 355 * 263 mm

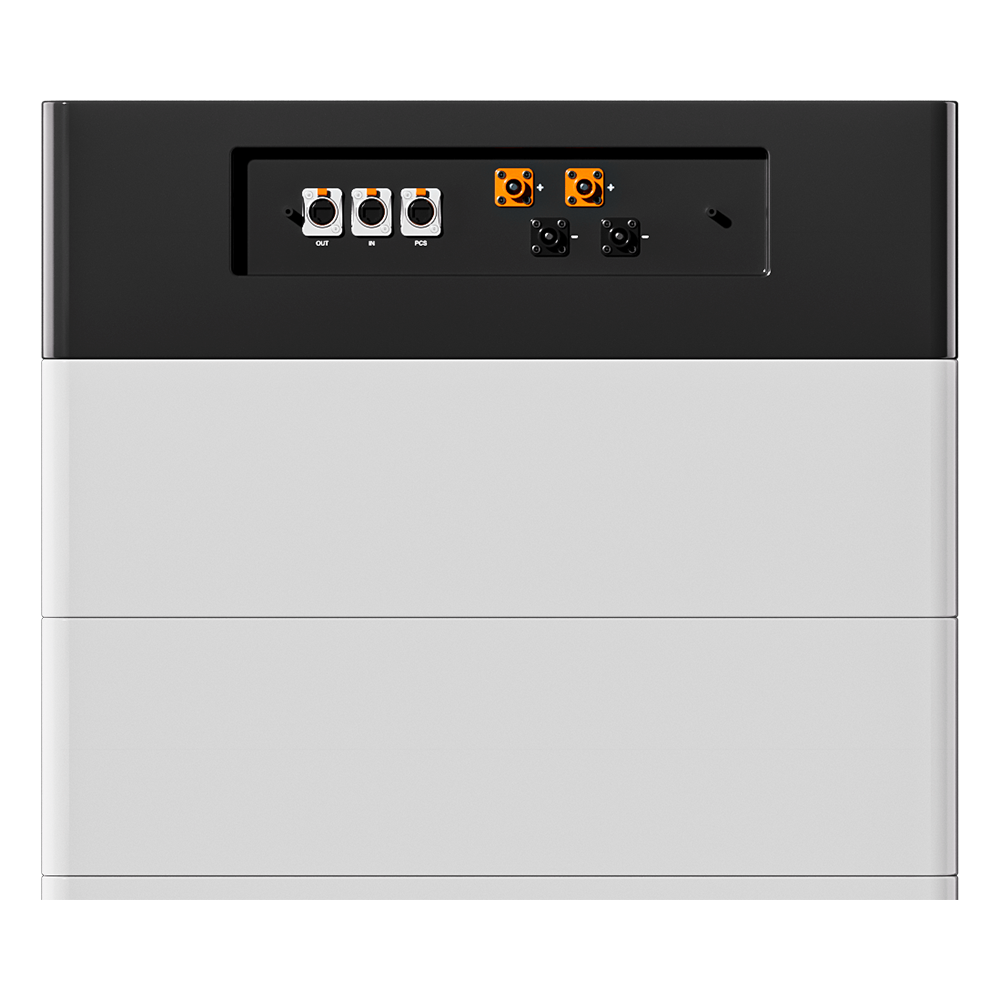

  • Controller Box Dimension (W*D*H): 650 * 355 * 183 mm
  • Controller Box Weight: 19.5Kg
  • Charging Temperature: From -5℃ to 55℃
  • Discharging Temperature: From -20℃ to 55℃
  • Depth of Discharge: 95%
  • Nominal Charge/Discharge Current: 50A
  • Max. Charge/Discharge Current: 100A
  • Cycle Life: ＞6000 cycles at 25℃
  • Ingress Protection Level: IP65
  • Cooling Type: Natural convection
  • Humidity: 5%~95%
  • Altitude: ＜2000 meters
  • Communication: CAN / RS485 / WiFi / Bluetooth
  • Battery Safety: IEC 62619 / IEC 62477 / CE
  • Transportation Certification: UN38.3
  • Warranty: 12 years

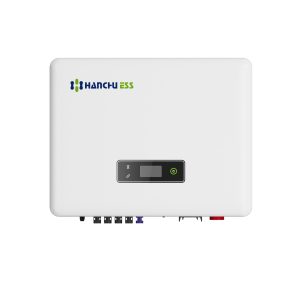

Compatible Products
