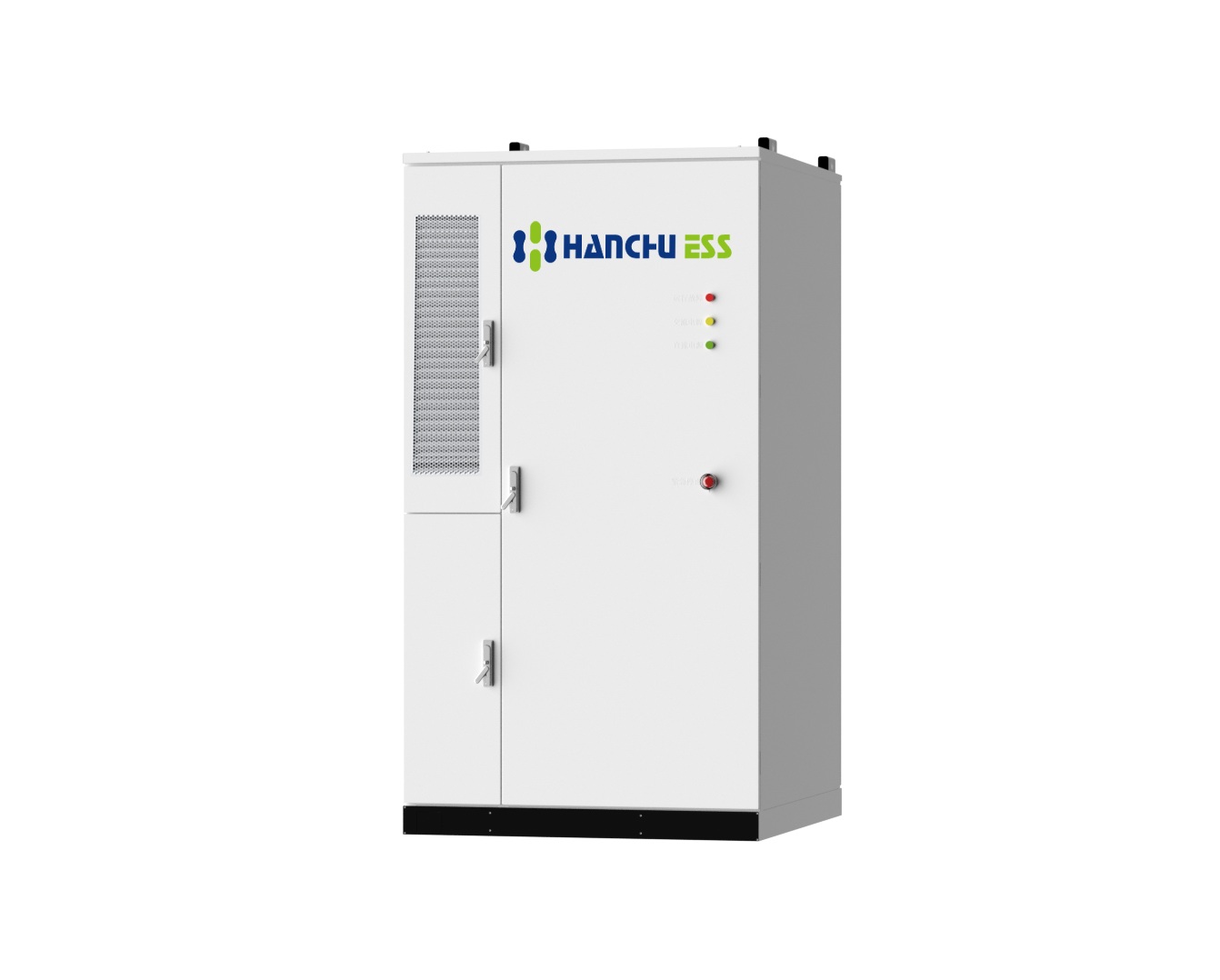

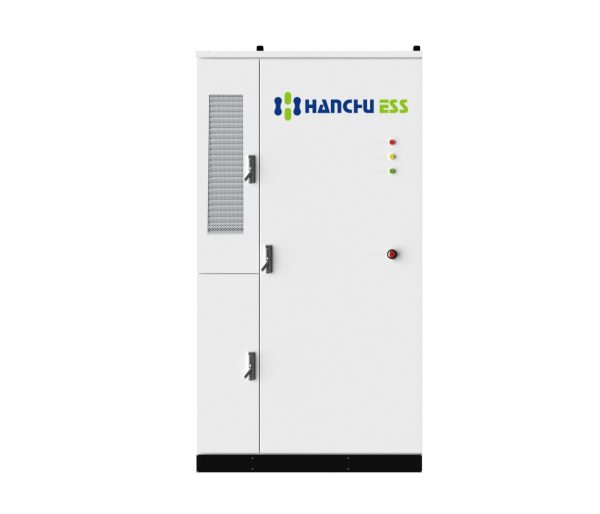

Liquid-cooling BESS Cabinet

SKU: CESS-418K-S Categories: , Tag:

Product Code: CESS-418K-S

Unparalleled Safety

Short-Circuit Safeguards

Integrated fuses ensure instant disconnection in the event of short circuits, minimising risks to personnel and property.

Comprehensive Fire Protection

Equipped with a non-toxic perfluorohexanone gas fire suppression system, and optional water spray pipelines for enhanced safety measures.

Battery Safety

Uses high-temperature-resistant and environmentally friendly LFP batteries to establish a robust safety barrier for the system.

Flexible and Adaptable

Modular and Quick Installation

Delivered as a fully integrated unit, supporting modular deployment for fast delivery and easy scalability.

Compact Design

Saves 20% of the required space compared to traditional systems, offering flexibility for constrained industrial and commercial applications.

Durability and Environmental Resilience

With IP54 protection, the cabinet is built to withstand harsh environments, ensuring stable and reliable operation even in challenging conditions.

Optimal Performance

Increased Energy Density

The energy density has been significantly enhanced, saving 20% of the footprint compared to traditional systems.

Eco-Friendly and Energy-Efficient

Designed to optimise performance while prioritising environmental sustainability.

Instantaneous Response

With millisecond-level reaction time, it can rapidly respond to sudden load changes or disruptions, ensuring system stability and reliability in various scenarios.

Liquid-cooling BESS Cabinet

SKU: CESS-418K-S Categories: , Tag:
DC Side
  • Rated Battery Energy Storage Capacity: 418kWh
  • System Rated Voltage: 1331.2V
  • System Voltage Range: 1164.8V~1497.6V
  • Battery Type: LFP(LiFePO4)
  • Battery String in Series Parallel Mode: 1P*52S*8S
  • Max Charge & Discharge Current: 157A
Conventional Parameter
  • Protection Level: IP54
  • Relative Humidity: 0°C~95°C (non-condensing)
  • Operating Temperature: -30°C~55°C
  • Cooling Mode: Liquid-cooling
  • Altitude: 3000m (De-rating over 2000m)
  • BMS Communication Interface: Ethernet/RS485/CAN
  • Dimension (W*D*H): 1250*1350*2335mm
  • Weight: 3400kg
