- Cell Type: LFP
- Nominal Energy: 5.12kWh
- Maximum Parallel Number: 16
- Nominal Voltage: 51.2V
- Operating Voltage Range: 43.2-57.6V
- Dimension (W*D*H) (mm): 338 * 138.5 * 600
- Weight: 46.5Kg
- Charging Temperature: From 0 to 50℃
- Discharging Temperature: From -10 to 60℃
- Depth of Discharge: 95% DoD
- Nominal Charge: 100A
- Discharge Current: 100A
- Ingress Protection Degree: IP54
- Cooling Type: Natural convection
- Humidity: ≤95%

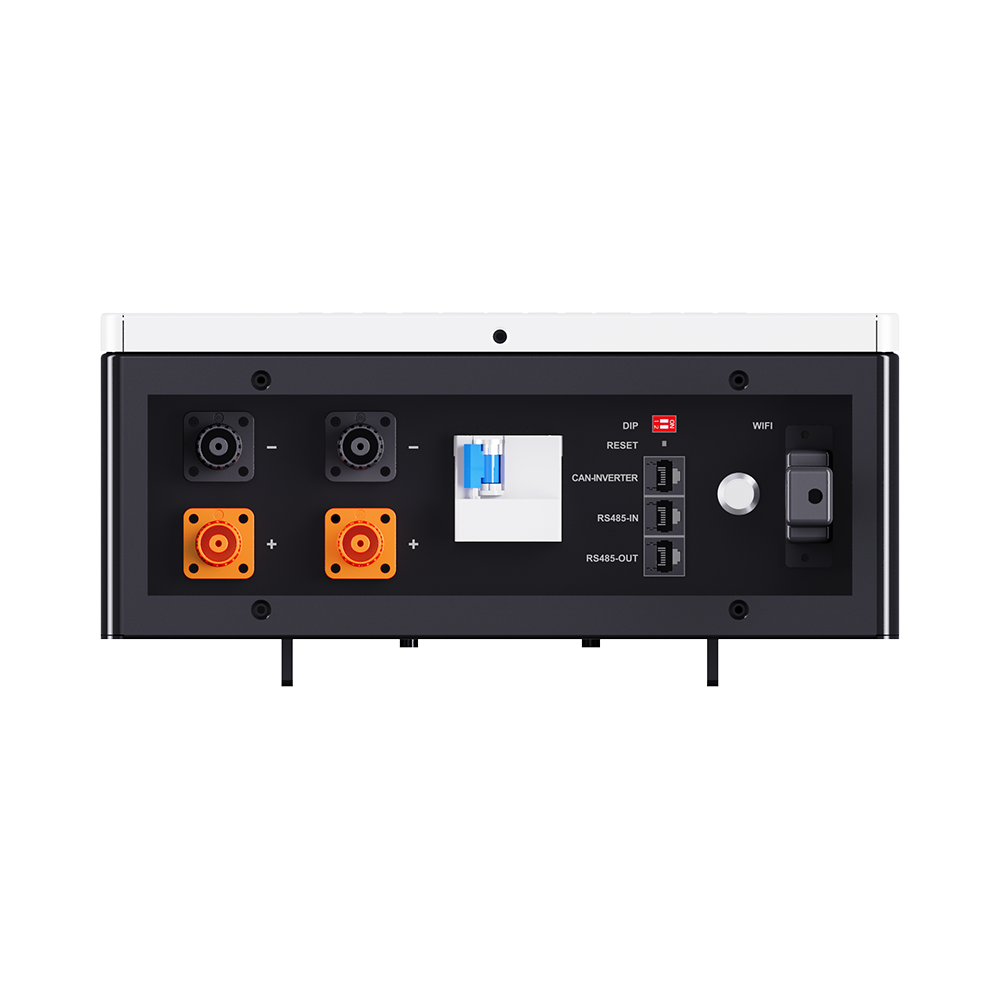

- Communication: CAN / RS485 / WiFi / Bluetooth
- Battery Safety: IEC 62619 / CE
- Transportation Certification: UN38.3
- Warranty: 12 years

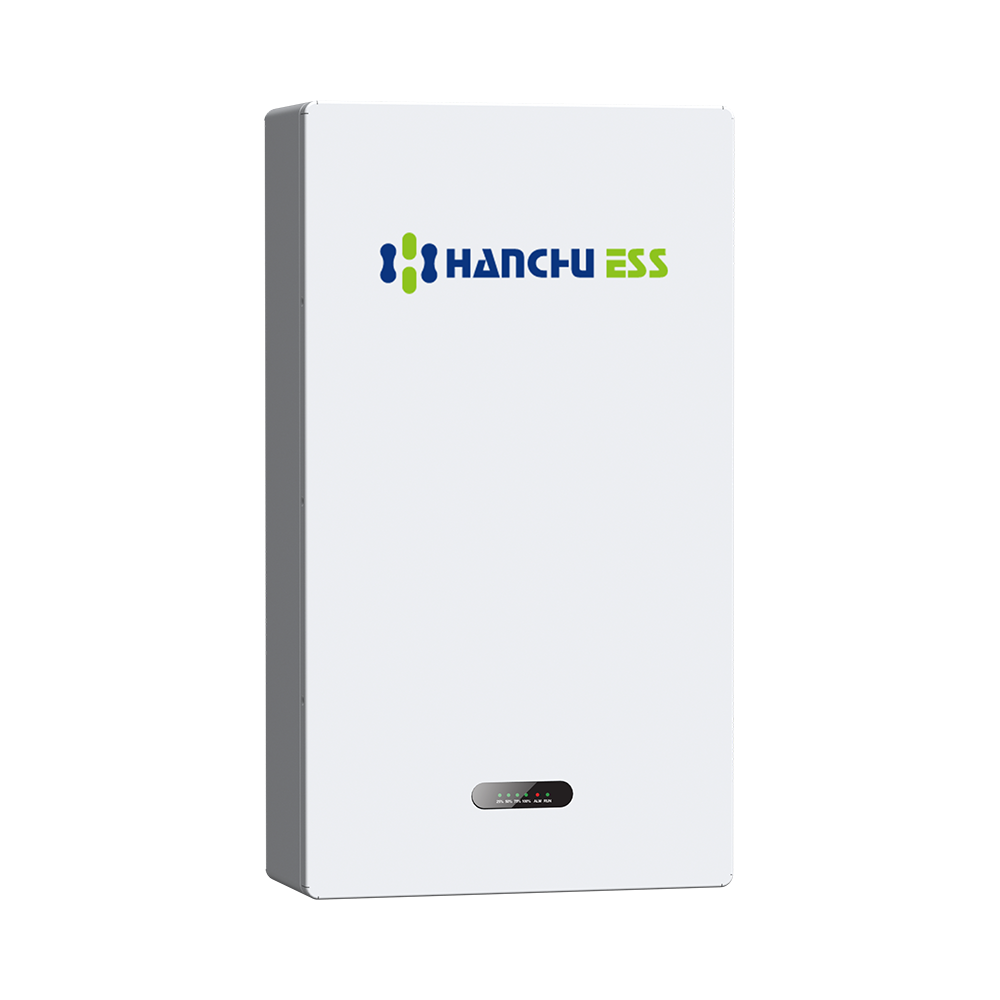

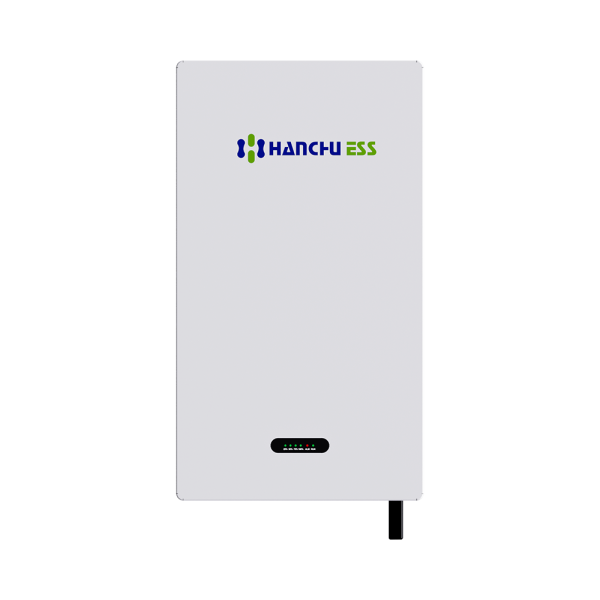

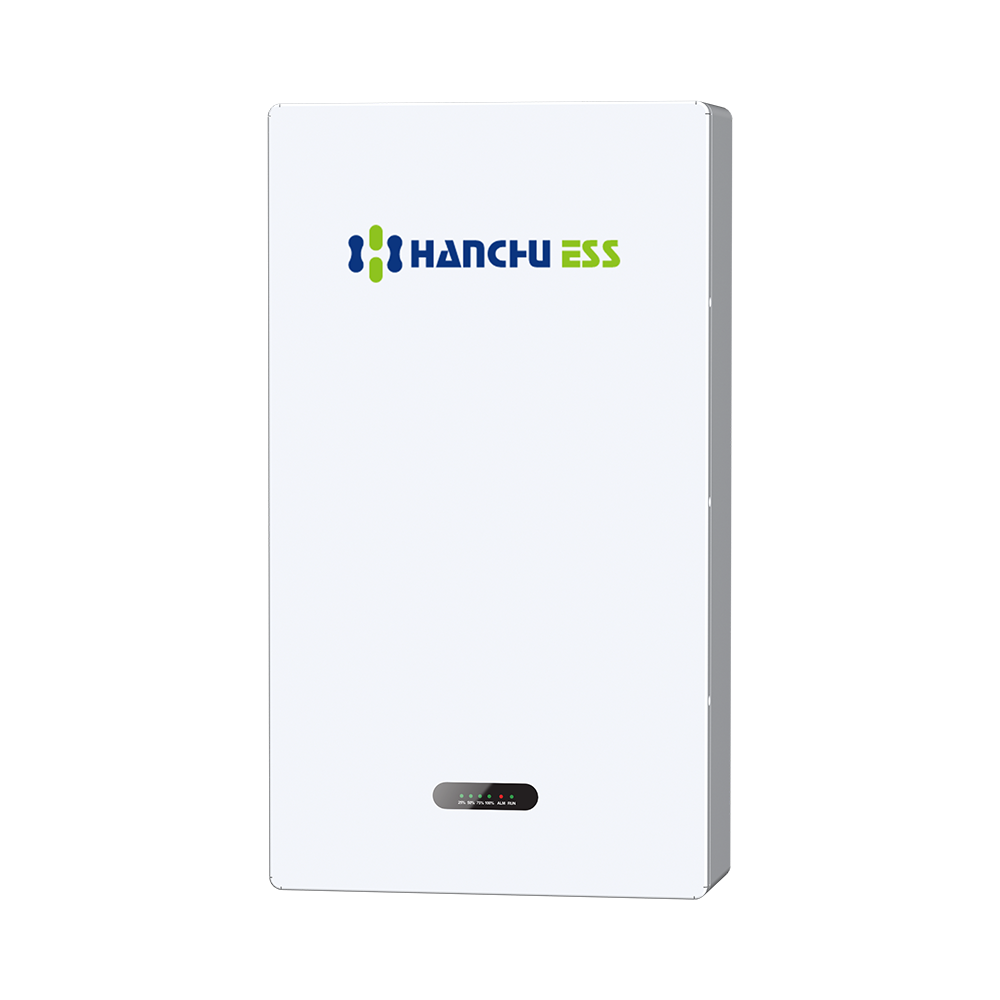

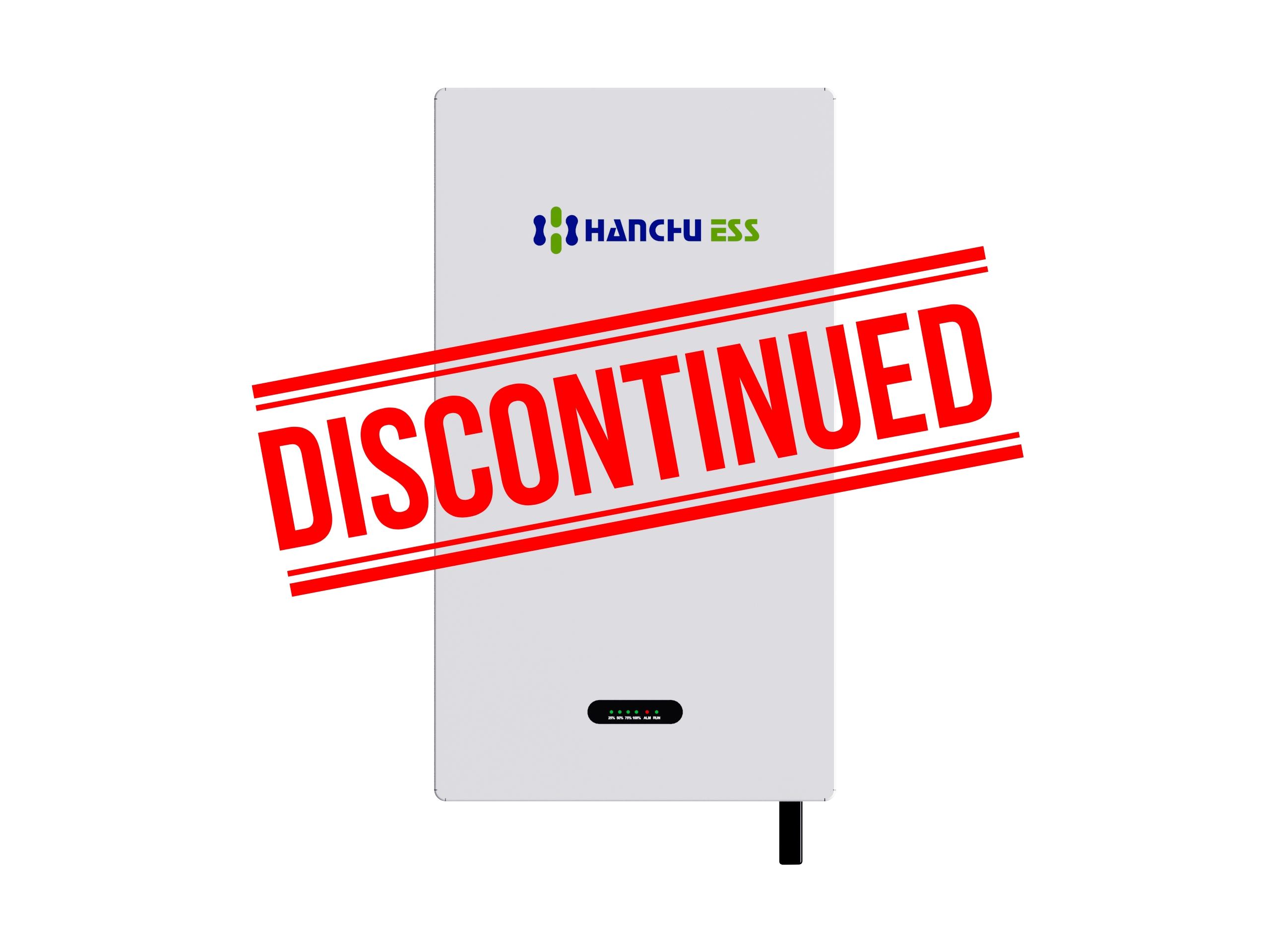

Hanchu Low Voltage Battery 5.12kWh
Product Code: HOME-ESS-LV-5.12K
- UK-based technical support team, always ready to assist
- Reliable national RMA service with a 48-hour response time
- 12-Year Warranty
Hanchu Low Voltage Battery 5.12kWh
Product Code: HOME-ESS-LV-5.12K
Unparalleled Safety
Premium Lithium Iron Phosphate Cells
Features high-quality LFP cells from leading suppliers, designed with advanced safety features at the cell level to ensure maximum reliability and peace of mind.
Built-in Heat Dissipation System
Includes an advanced cooling system to maintain safe battery operation.
Advanced BMS Protection
Equipped with a built-in Battery Management System (BMS) that ensures comprehensive safety through real-time monitoring, fault detection, and lifespan optimisation.
Flexible and Scalable
Compact and Minimalist Design
Features a sleek, lightweight design that is smaller and lighter compared to similar products, making it ideal for installation in limited spaces without specific spatial requirements.
Scalability
Supports the connection of up to 16 batteries in parallel, meeting a wide range of user requirements and allowing for simple addition of batteries anytime.
Easy and Quick Installation
Features user-friendly designs such as pre-assembled wiring harnesses and quick-connect installation, simplifying the setup process and reducing installation time.
Smart Energy Management
Smart Monitoring with iESS:
The intelligent iESS platform continuously monitors battery performance, employing both hardware and software solutions to ensure operational safety and efficiency.
Octopus Tariff Integration:
Compatible with Auto Octopus energy pricing, reducing energy costs by utilising cheaper rates.
Smart Weather Compensation
Automatically adjusts settings in response to weather conditions to maximise energy efficiency.
