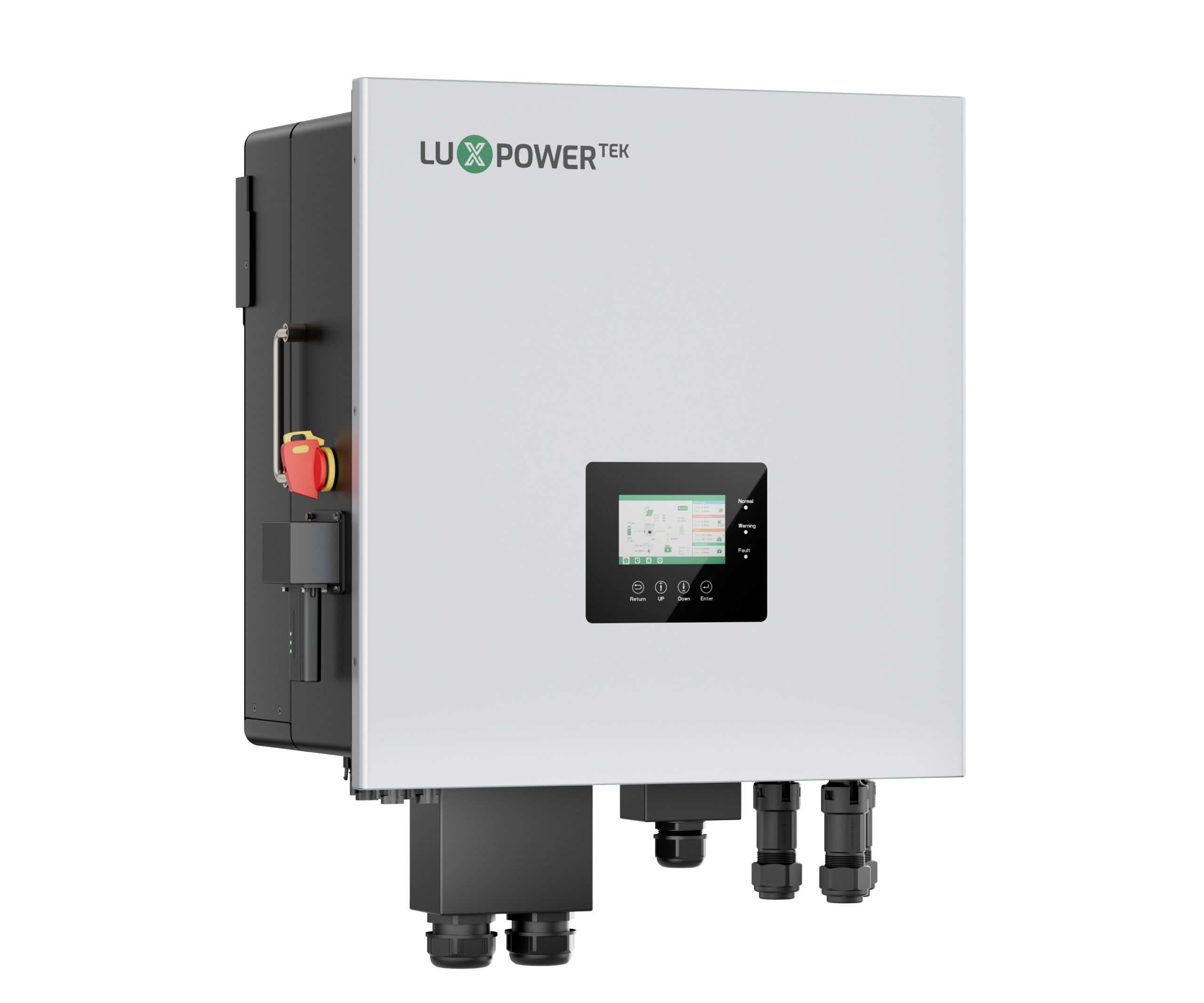

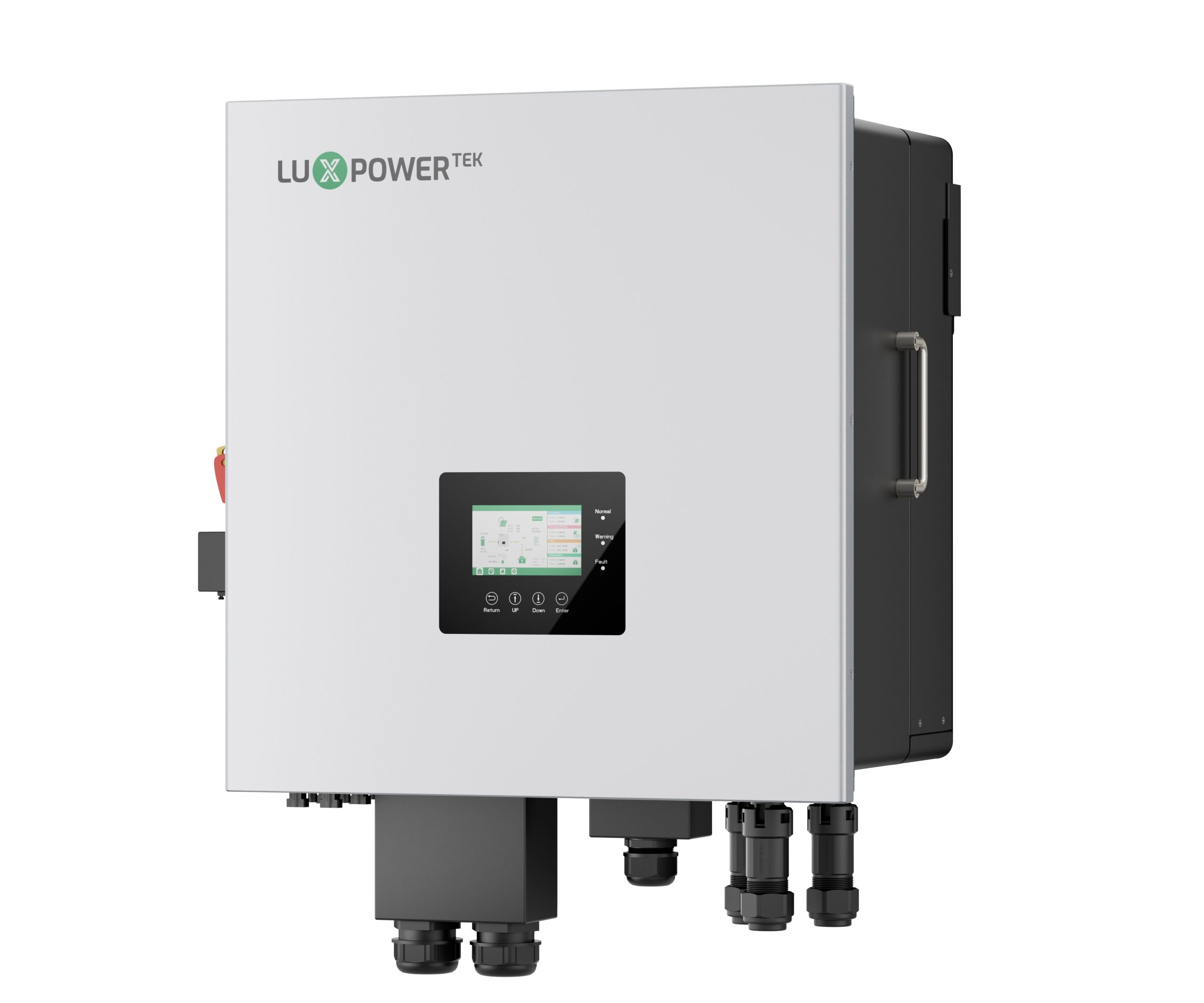

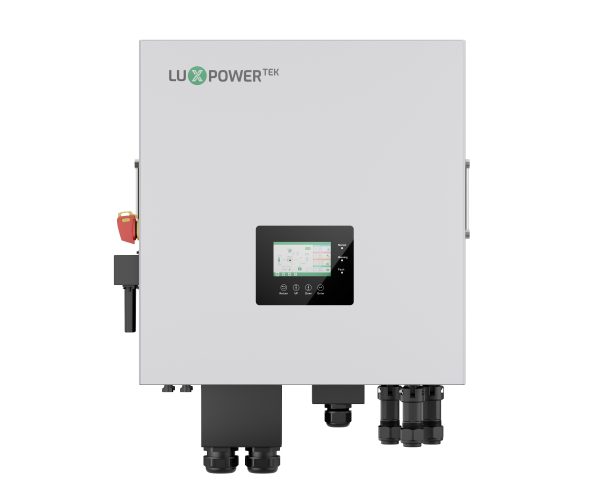

LuxPower Single Phase Hybrid Inverter 7kW

SKU: GEN-LB-EU 7K Categories: , Tag:

Manufacturer Code: GEN-LB-EU 7K

Order Code: LUX-HYPA-7.0KW

X
  • UK-based technical support team, always ready to assist
  • Reliable national RMA service with a 48-hour response time
  • 12-Year Warranty

LuxPower Single Phase Hybrid Inverter 7kW

SKU: GEN-LB-EU 7K Categories: , Tag:

Manufacturer Code: GEN-LB-EU 7K

Order Code: LUX-HYPA-7.0KW

Introduction

Designed for homeowners seeking reliable and efficient energy storage, the Luxpower’s single phase hybrid inverter delivers optimal solar energy use with high PV input and intelligent time-of-use charging.

With advanced energy management features, it intelligently adapts to fluctuating energy demands, delivering both cost savings and energy independence.

Its advanced PV input and parallel capacity allow for efficient power distribution, whether for immediate use or storage. The intuitive monitoring system gives you full control over your energy consumption, and with built-in backup capabilities, your home stays powered even during grid outages—ensuring energy security day and night.

Key Features

  • 2 MPPTs, Max. PV input 15kW
  • Max. charging and discharging current: 210A
  • Supports up to 10pcs in parallel for on/off grid
  • Time of Use and weather optimisation charge for e-bill reduction

LuxPower Single Phase Hybrid Inverter 7kW

SKU: GEN-LB-EU 7K Categories: , Tag:
PV Input
  • Max. PV array power : 12000W
  • Max. input voltage : 600V
  • MPPT voltage range / rated input voltage : 120-500V/360V
  • Min. input voltage / start voltage : 140V
  • No. of independent MPPT trackers / strings per MPPT input : 2 | (2:2)
  • Max. input current per MPP tracker : 25A
  • Max. short-circuit current per MPP tracker : 34A
Battery Input
  • Nominal battery voltage : 48V
  • Battery voltage range : 40-60V
  • Max. charging / discharge power : 7000W
  • Max. charging current / Max. discharging current : 146A
  • Battery type : Lithium-ion/Lead-Acid
AC Output
  • AC voltage range / Nomlnal AC voltage : 180-270V/230V
  • Rated AC grid frequency : 50/60Hz
  • Rated apparent power : 7000W
  • Max. apparent power : 7000W
  • Rated grid output current (@230V) : 30.43A
  • Max. grid output current : 30.43A
AC Input
  • Rated grid voltage : 230V
  • Rated apparent power : 7000W
  • Max. input apparent power from grid : 13800W
  • Rated input curent from grid : 30.43A
  • Max. input current from grid : 60A
EPS Output
  • Nominal output voltage : 230V
  • Nominal output frequency : 50/60Hz
  • Rated apparent power : 7000W
  • Max. output apparent power : 7000W
  • Peak output apparent power : 14000W (for 0.5s)
  • Max. output current : 30.4A
  • Max. switch time : <20ms
Efficiency
  • MPPT efficiency : 99.90%
  • Euro efficiency / Max. efficiency : 97.50%
  • Max. battery to load efficiency : 94%
General Data
  • Dimensions (W*H*D) (mm) : 536*556*290mm
  • Device weight : 42.64 kg
  • Operating temperature range : -25C ~ +60C
  • Noise emissions (typical) : <50 dB
  • Standby consumption : <20W
  • Degree of protection (as per lEC 60529) : IP65 / NEMA 4X
Features
  • User interface : Touch color screen | RS485/WiFi/CAN
  • Communication with BMS : CANBUS and RS485
  • Communication with meter : Eastron meters | Baud rates: 2400bps / 19200bps
  • Communication with portal :
  • Other communication : RS485 / CAN / WiFi
  • Communication :
  • Integrated power control / Zero export control :
  • Certifications : G99 | G100 | NRS 097
  • Warranty : 12 years
