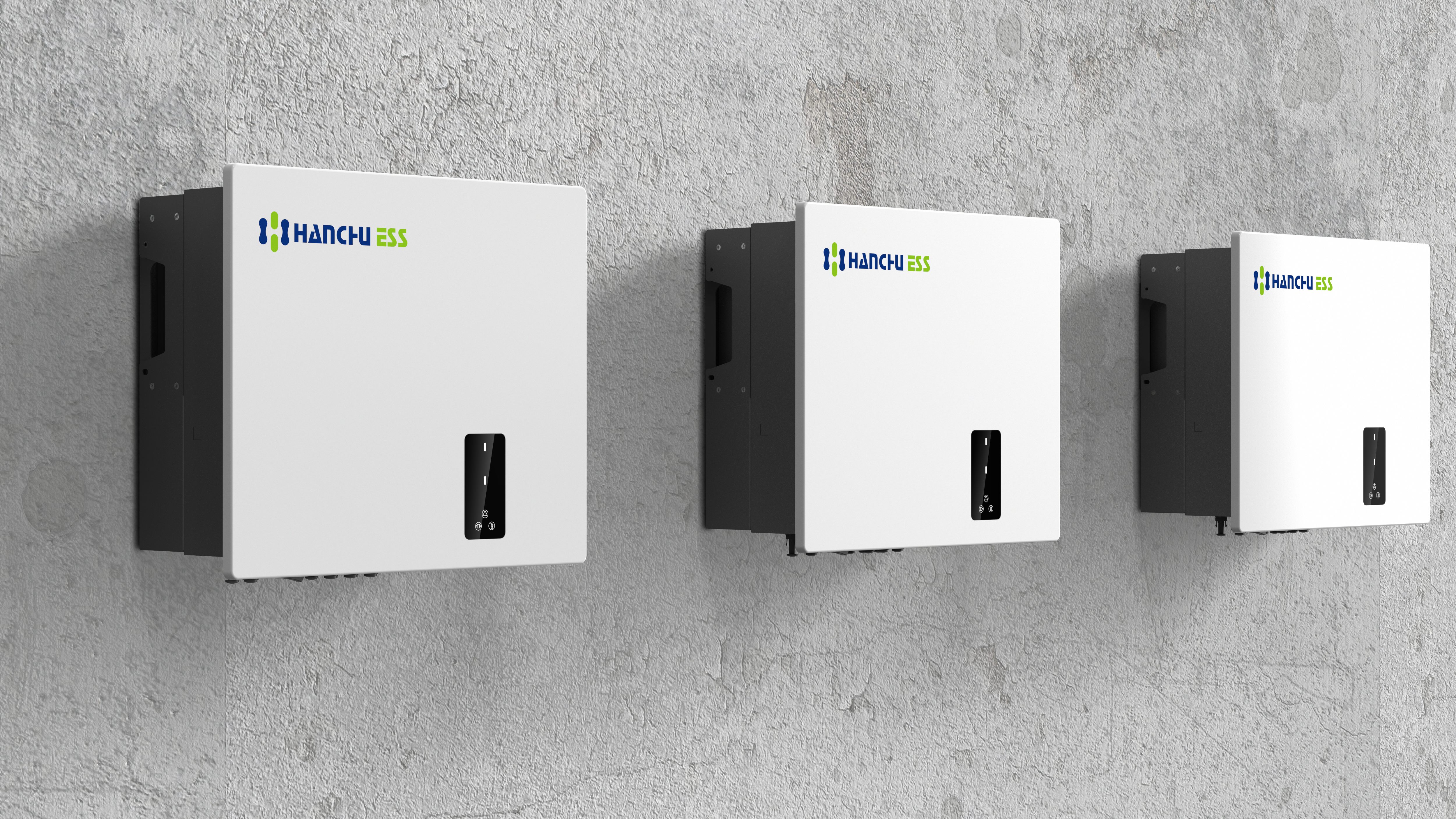

Hanchu Three Phase Hybrid Inverter 12kW

SKU: HESS-HY-T-12K Categories: , Tag:

Product Code: HESS-HY-T-12K

X
  • UK-based technical support team, always ready to assist
  • Reliable national RMA service with a 48-hour response time
  • 12-Year Warranty

Hanchu Three Phase Hybrid Inverter 12kW

SKU: HESS-HY-T-12K Categories: , Tag:

Product Code: HESS-HY-T-12K

Ultra Performance

150% PV Array Over-Sizing

Supports up to 150% over-sizing of the photovoltaic (PV) array, enabling greater energy generation and flexibility in system design.

100% Unbalanced Three Phase Output

Ensures reliable and stable operation with full output capacity, even when loads are uneven across three phases, maximising system efficiency.

Bifacial and High-Power PV Module Support

Accommodates input currents up to 20A, making it ideal for modern bifacial and high-power PV modules that require higher current ratings.

Reliable Operation

Robust IP66 Enclosure

Provides high level of protection against dust and water, making it suitable for outdoor installations.

Ultra-Fast Switching Time

With EPS switching time of less than 10 milliseconds, it ensures minimal interruption during power outages, crucial for sensitive electronics and critical operations.

Shadow Scan Feature

Enhances solar panel performance by optimising output even in non-ideal conditions, such as partial shading.

Easy Maintenance

Remote Management

Easily manage settings and monitor performance via the iESS and Hanchu app, offering convenience and real-time control.

Easy Fix DC Connections

Equipped with Phoenix Contact connectors for quick and secure connections, streamlining the installation process with a hassle-free, push and click connections.

Wide Compatibility

Supports high-voltage batteries and offers straightforward interfaces for integrating batteries, smart meters, and current transformers (CTs), ensuring seamless compatibility with a variety of existing systems.

Hanchu Three Phase Hybrid Inverter 12kW

SKU: HESS-HY-T-12K Categories: , Tag:
PV Input
  • Max. PV array power : 18000Wp
  • Max. input voltage : 1100V
  • MPPT voltage range / rated input voltage : 200V to 950V/630V
  • Min. input voltage / start voltage : 60V/180V
  • No. of independent MPPT trackers / strings per MPPT input : 03-Jan
  • Max. input current per MPP tracker : 16A
  • Max. short-circuit current per MPP tracker : 24A
Battery Input
  • Nominal battery voltage : /
  • Battery voltage range : 120V to 600V
  • Max. charging / discharge power : 12000W
  • Max. charging current / Max. discharging current : 36A
  • Battery type : LFP
AC Output
  • AC voltage range / Nomlnal AC voltage .
  • Rated AC grid frequency . 50Hz/ 60Hz
  • Rated apparent power . 12000VA
  • Max. apparent power . 12000VA
  • Max. grid output current . 19.2A
AC Input
  • Rated grid voltage . 3/N/PE | 220/380V;230/400V;240/415V
  • Rated apparent power . 24000W
  • Max. input apparent power from grid . /
  • Rated input curent from grid . /
  • Max. input current from grid . 34.8A
EPS Output
  • Nominal output voltage : 3/N/PE | 220/380V;230/400V;240/415V
  • Nominal output frequency : 50Hz/ 60Hz
  • Rated apparent power : 12000VA
  • Max. output apparent power : /
  • Peak output apparent power : 2 times of rated power | 10s
  • Max. output current : 17.4A
  • Max. switch time : ＜10ms
Efficiency
  • MPPT efficiency : 99.90%
  • Euro efficiency / Max. efficiency : 97.9%/98.45
  • Max. battery to load efficiency : /
General Data
  • Dimensions (W*H*D) (mm) : 545*465*205
  • Device weight : 24.5Kg
  • Operating temperature range : -25℃~+60℃
  • Noise emissions (typical) : /
  • Standby consumption : /
  • Degree of protection (as per lEC 60529) : IP66
Features
  • User interface : LED & APP
  • Communication with BMS : CAN
  • Communication with meter : RS485
  • Communication with portal : WiFi/LAN/5G/Bluetooth
  • Other communication : /
  • Communication : /
  • Integrated power control / Zero export control : Integrated/Integrated
  • Certifications : EN 61000 | IEC 62109 | EN 50549 | VDE 4105;VFR 201 | G98 | G99 | G100 | CEI 0-21 | MEN
  • Warranty : 12 years
